计算机图形学入门 -- OpenGL

暑假闲的没事干，学习了一下计算机图形学，入门了OpenGL，记录一下

什么是OpenGL

OpenGL（Open Graphics Library）是一个跨平台、跨语言的图形应用程序接口（API），用于渲染2D、3D矢量图形。它由Khronos Group维护，广泛应用于游戏开发、CAD设计、虚拟现实、科学可视化等领域。

使用C++编写创建一个窗口

1.需要安装两个库

GLFW和Glad库，GLFW 负责把窗口和输入搞定，GLAD 负责把 OpenGL 的函数指针加载好。

如果使用vcpkg，可以很方便的安装

1
vcpkg install glfw3 glad

然后导入头文件

1
2
#include<glad/glad.h>
#include<GLFW/glfw3.h>

2.代码编写

2.1 初始化

1
2
3
4
glfwInit();
glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 4);
glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 6);
glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);

GLFW_OPENGL_CORE_PROFILE说明这里使用核心渲染模式，不使用过去的立即渲染模式

2.2 窗口创建

1
2
3
4
5
6
7
8
9
10
11
GLFWwindow* window = glfwCreateWindow(800, 600, "study", nullptr, nullptr);
if (window == nullptr) {
	std::cout << "error when create window" << std::endl;
	return -1;
}
// 绑定上下文（绑定到当前线程）
glfwMakeContextCurrent(window);
// 绑定窗口变化监听的函数
glfwSetFramebufferSizeCallback(window,framebufferSizeCallback);
// 绑定按键监听函数
glfwSetKeyCallback(window, keybordCallBack);

回调函数定义如下：

1
2
3
void framebufferSizeCallback(GLFWwindow* window, int width, int height) {
	glViewport(0, 0, width, height);
}
1
2
3
4
5
void keybordCallBack(GLFWwindow* window, int key, int scancode, int action, int mods) {
	if (key == GLFW_KEY_ESCAPE && action == 1 && mods == 0) { // ESC键按下退出
		glfwSetWindowShouldClose(window, true);
	}
}

2.3 加载OpenGL

1
2
3
4
if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress)) {
	std::cout << "error when load glad loader" << std::endl;
	return -1;
}

2.4 窗口准备

1
2
glViewport(0, 0, 800, 600); // 渲染的区域范围
glClearColor(0.2f, 0.3f, 0.3f, 1.0f); // 设置刷新颜色

2.5 窗口循环

1
2
3
4
5
6
7
8
while (!glfwWindowShouldClose(window)) {
	glfwPollEvents(); // 处理各类事件
	glClear(GL_COLOR_BUFFER_BIT); // 清空窗口
	glfwSwapBuffers(window); // 这里类似于刷新缓冲区，减少画面卡顿
}
glfwTerminate(); // 结束
std::cout << "exit" << std::endl;
return 0;

即可完成窗口的创建

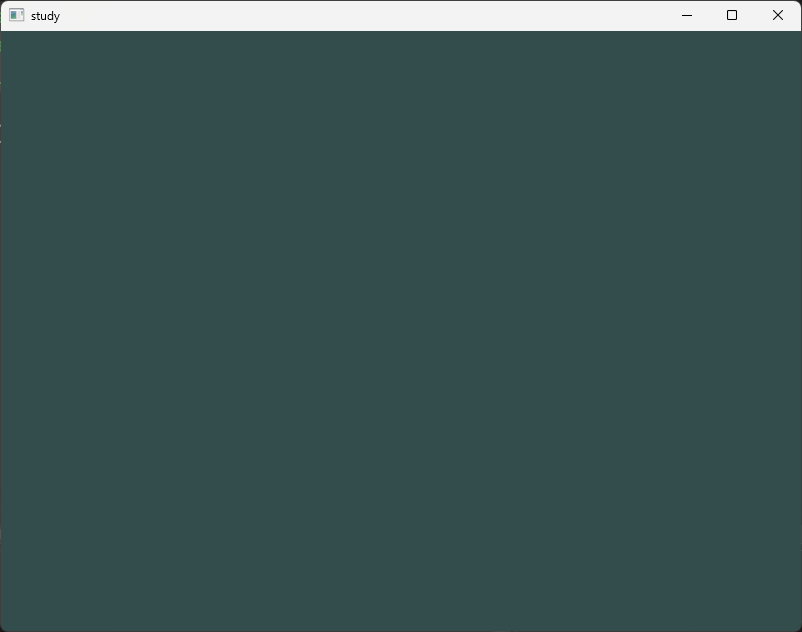

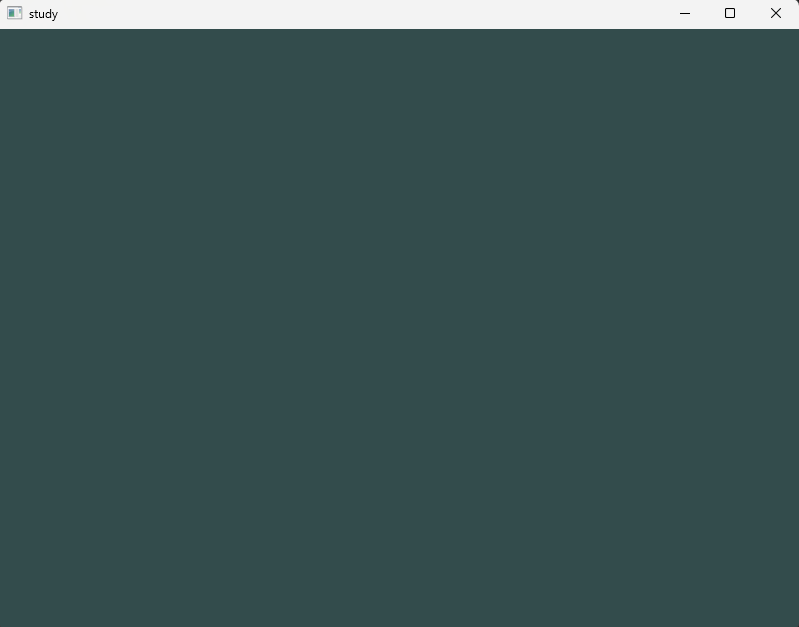

empty_window

在窗口中渲染一个三角形

1.基础概念

在OpenGL中，任何事物都在3D空间中，而屏幕和窗口却是2D像素数组，这导致OpenGL的大部分工作都是关于把3D坐标转变为适应你屏幕的2D像素。3D坐标转为2D坐标的处理过程是由OpenGL的图形渲染管线（Graphics Pipeline，大多译为管线，实际上指的是一堆原始图形数据途经一个输送管道，期间经过各种变化处理最终出现在屏幕的过程）管理的。图形渲染管线可以被划分为两个主要部分：第一部分把你的3D坐标转换为2D坐标，第二部分是把2D坐标转变为实际的有颜色的像素。

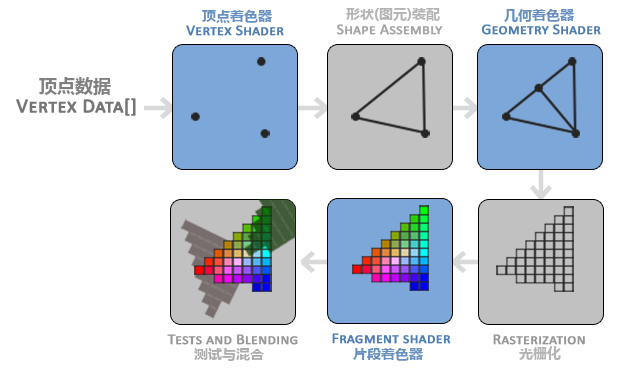

pipeline

  1. 图形渲染管线（Graphics Pipeline）
    把 3D 坐标 → 2D 像素的一条“传送带”，分两大阶段：①坐标变换 ②像素着色，可并行、可替换其中的 Shader。
  2. 标准化设备坐标（NDC）
    所有顶点最终必须落到 [-1, 1]³ 的立方体里，否则被裁掉；y 向上，原点在中心。
  3. 图元（Primitive）
    告诉 OpenGL 把顶点当成什么来装配：点 GL_POINTS、线 GL_LINE_STRIP、三角形 GL_TRIANGLES……
  4. 顶点属性（Vertex Attribute）
    每个顶点可以携带任意数据，最简形式是 vec3 position。
  5. VBO（Vertex Buffer Object）
    GPU 显存里的“一卡车”顶点数据，一次性从 CPU 上传，减少 draw call 开销。
  6. 顶点着色器（Vertex Shader）
    逐顶点执行，把本地坐标 → 裁剪坐标，输出 gl_Position（必须写）。
  7. 片段着色器（Fragment Shader）
    逐像素执行，决定最终颜色；输出 vec4 FragColor（必须写）。
  8. 着色器程序（Shader Program）
    把若干编译好的 Shader（至少顶点+片段）链接成可执行程序，绘制前 glUseProgram(id) 激活。
  9. glVertexAttribPointer / glEnableVertexAttribArray
    告诉 OpenGL 如何从 VBO 里解析出顶点属性（位置、颜色、法线…）。
  10. VAO（Vertex Array Object）
    把“VBO + 解析规则 + EBO”打包成一个对象；绑定一次 VAO = 一键恢复全部状态，Core Profile 强制使用。
  11. EBO / IBO（Element/Index Buffer Object）
    存索引，避免重复顶点；配合 glDrawElements 做索引绘制，省内存。
  12. 绘制调用
    • 无索引：glDrawArrays(GL_TRIANGLES, 0, 3)
    • 有索引：glDrawElements(GL_TRIANGLES, 6, GL_UNSIGNED_INT, 0)

2.代码编写

2.1 创建mesh数据

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
// 准备一个vao，位置信息和颜色信息分开
void prepareSingleBuffer() {
	float positions[] = {
		-0.5f,0.0f,0.0f,
		0.5f,0.0f,0.0f,
		0.0f,0.5f,0.0f
	};
	float colors[] = {
		1.0f,0.0f,0.0f,
		0.0f,1.0f,0.0f,
		0.0f,0.0f,1.0f
	};

	GLuint posVbo = 0, colorVbo = 0;
	glGenBuffers(1, &posVbo);
	glGenBuffers(1, &colorVbo);

	glBindBuffer(GL_ARRAY_BUFFER, posVbo);
	glBufferData(GL_ARRAY_BUFFER, sizeof(positions), positions, GL_STATIC_DRAW);
	glBindBuffer(GL_ARRAY_BUFFER, colorVbo);
	glBufferData(GL_ARRAY_BUFFER, sizeof(colors), colors, GL_STATIC_DRAW);

	glGenVertexArrays(1, &vao);
	glBindVertexArray(vao);

	glBindBuffer(GL_ARRAY_BUFFER, posVbo);
	glEnableVertexAttribArray(0);
	glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, sizeof(float) * 3, (void*)0);

	glBindBuffer(GL_ARRAY_BUFFER, colorVbo);
	glEnableVertexAttribArray(1);
	glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, sizeof(float) * 3, (void*)0);

	glBindVertexArray(0);
}

// 当然也可以这么写
void prepareInterleavedBuffer() {
	float vertex[] = {
		-0.5f,0.5f,0.0f,1.0f,0.0f,0.0f,
		0.5f,-0.5f,0.0f,0.0f,1.0f,0.0f,
		0.0f,0.5f,0.0f,0.0f,0.0f,1.0f
	};

	GLuint vbo = 0;
	glGenBuffers(1, &vbo);
	glBindBuffer(GL_ARRAY_BUFFER, vbo);
	glBufferData(GL_ARRAY_BUFFER, sizeof(vertex), vertex, GL_STATIC_DRAW);

	glGenVertexArrays(1, &vao);
	glBindVertexArray(vao);
	glEnableVertexAttribArray(0);
	glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, sizeof(float) * 6, (void*)0);
	glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, sizeof(float) * 6, (void*)(3*sizeof(float)));

	glBindVertexArray(0);
}

VBO是记录顶点的元数据，比如位置，颜色，uv之类的

VAO是记录VBO的结构，定义了如何使用VBO的数据

通过 VBO → VAO → Shader 这个过程，即可渲染出一个物体

2.2 创建着色器

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
void createShaderProgram() {

	/*
	*	顶点着色器
	*/
	const char* vertexShaderSource = "#version 330 core\n"
		"layout (location = 0) in vec3 aPos;\n"
		"layout (location = 1) in vec3 aColor;\n"
		"out vec3 vertexColor;\n"
		"void main()\n"
		"{\n"
		"   gl_Position = vec4(aPos.x, aPos.y, aPos.z, 1.0);\n"
		"   vertexColor = aColor;\n"
		"}\0";
	// 创建shader
	unsigned int vertexShader;
	vertexShader = glCreateShader(GL_VERTEX_SHADER);
	// 添加代码
	glShaderSource(vertexShader, 1, &vertexShaderSource, NULL);
	// 编译shader
	glCompileShader(vertexShader);
	// 检查编译结果
	int  success;
	char infoLog[512];
	glGetShaderiv(vertexShader, GL_COMPILE_STATUS, &success);
	if (!success)
	{
		glGetShaderInfoLog(vertexShader, 512, NULL, infoLog);
		std::cout << "ERROR::SHADER::VERTEX::COMPILATION_FAILED\n" << infoLog << std::endl;
		exit(0);
	}

	/*
	*	片段着色器
	*/
	const char* fragmentShaderSource = R"(
		#version 330 core
		in vec3 vertexColor;
		out vec4 FragColor;

		void main()
		{
			FragColor = vec4(vertexColor, 1.0f);
		}
			)";

	unsigned int fragmentShader;
	fragmentShader = glCreateShader(GL_FRAGMENT_SHADER);
	glShaderSource(fragmentShader, 1, &fragmentShaderSource, NULL);
	glCompileShader(fragmentShader);
	glGetShaderiv(fragmentShader, GL_COMPILE_STATUS, &success);
	if (!success)
	{
		glGetShaderInfoLog(fragmentShader, 512, NULL, infoLog);
		std::cout << "ERROR::SHADER::FRAGMENT::COMPILATION_FAILED\n" << infoLog << std::endl;
		exit(0);
	}

	// 创建着色器容器
	shaderProgram = glCreateProgram();
	// 附着着色器
	glAttachShader(shaderProgram, vertexShader);
	glAttachShader(shaderProgram, fragmentShader);
	// 链接着色器
	glLinkProgram(shaderProgram);
	glGetProgramiv(shaderProgram, GL_LINK_STATUS, &success);
	if (!success) {
		glGetProgramInfoLog(shaderProgram, 512, NULL, infoLog);
		std::cout << "ERROR::SHADER::FRAGMENT::LINK_FAILED\n" << infoLog << std::endl;
		exit(0);
	}
	// 使用着色器
	glUseProgram(shaderProgram);
	// 完成销毁
	glDeleteShader(vertexShader);
	glDeleteShader(fragmentShader);
}

2.3 渲染

完成上面的步骤后，在渲染循环中编写如下代码

1
2
3
4
5
6
7
8
glfwPollEvents();
glClear(GL_COLOR_BUFFER_BIT);

glUseProgram(shaderProgram);
glBindVertexArray(vao);
glDrawArrays(GL_TRIANGLES, 0,3);

glfwSwapBuffers(window);

成功渲染出一个三角形：

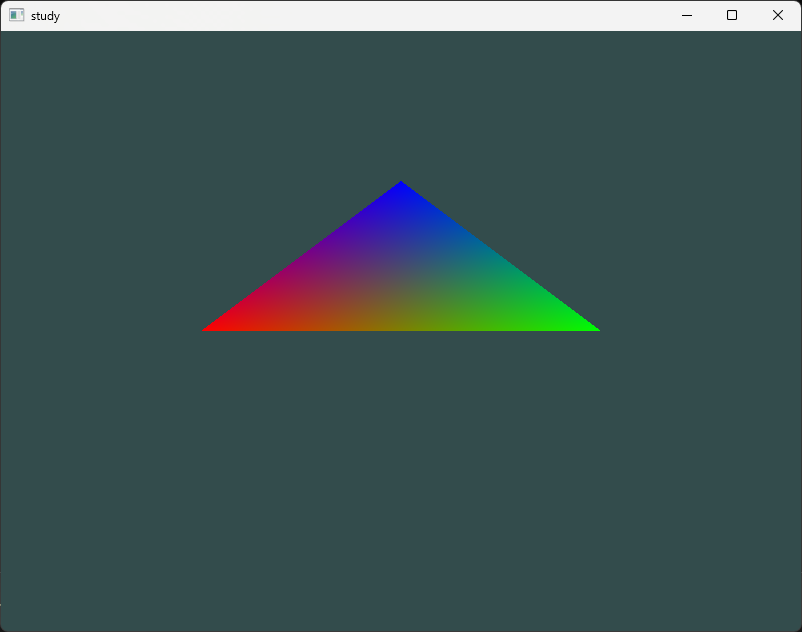

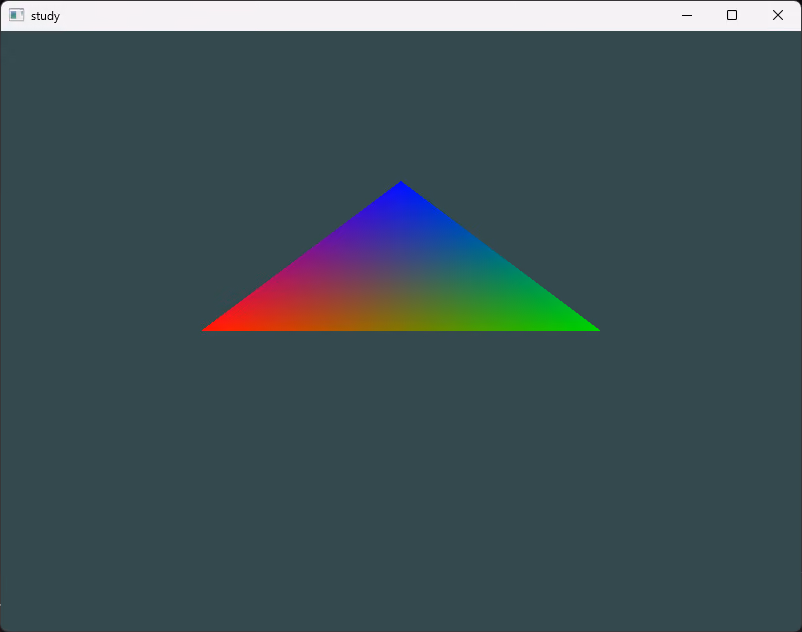

rectangle

完整实例

main.cpp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
#include "OpenGLStudy.h"

int main()
{
	glfwInit();
	glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 4);
	glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 6);
	glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);

	GLFWwindow* window = glfwCreateWindow(800, 600, "study", nullptr, nullptr);
	if (window == nullptr) {
		std::cout << "error when create window" << std::endl;
		return 1;
	}
	glfwMakeContextCurrent(window);

	glfwSetFramebufferSizeCallback(window,framebufferSizeCallback);

	glfwSetKeyCallback(window, keybordCallBack);

	if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress)) {
		std::cout << "error when load glad loader" << std::endl;
		return -1;
	}

	glViewport(0, 0, 800, 600);
	glClearColor(0.2f, 0.3f, 0.3f, 1.0f);

	//prepareInterleavedBuffer();
	prepareSingleBuffer();
	createShaderProgram();

	while (!glfwWindowShouldClose(window)) {
		render(window);
	}
	glfwTerminate();
	std::cout << "exit" << std::endl;
	return 0;
}

OpenGLStudy.h:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
#pragma once
#include<iostream>
#include<glad/glad.h>
#include<GLFW/glfw3.h>

GLuint vao, shaderProgram;


// 窗口大小改变回调函数(缓冲区大小)
void framebufferSizeCallback(GLFWwindow* window, int width, int height) {
	glViewport(0, 0, width, height);
}

// 键盘事件回调函数
void keybordCallBack(GLFWwindow* window, int key, int scancode, int action, int mods) {
	if (key == GLFW_KEY_ESCAPE && action == 1 && mods == 0) {
		glfwSetWindowShouldClose(window, true);
	}
}

// 准备一个vao，位置信息和颜色信息分开
void prepareSingleBuffer() {
	float positions[] = {
		-0.5f,0.0f,0.0f,
		0.5f,0.0f,0.0f,
		0.0f,0.5f,0.0f
	};
	float colors[] = {
		1.0f,0.0f,0.0f,
		0.0f,1.0f,0.0f,
		0.0f,0.0f,1.0f
	};

	GLuint posVbo = 0, colorVbo = 0;
	glGenBuffers(1, &posVbo);
	glGenBuffers(1, &colorVbo);

	glBindBuffer(GL_ARRAY_BUFFER, posVbo);
	glBufferData(GL_ARRAY_BUFFER, sizeof(positions), positions, GL_STATIC_DRAW);
	glBindBuffer(GL_ARRAY_BUFFER, colorVbo);
	glBufferData(GL_ARRAY_BUFFER, sizeof(colors), colors, GL_STATIC_DRAW);

	glGenVertexArrays(1, &vao);
	glBindVertexArray(vao);

	glBindBuffer(GL_ARRAY_BUFFER, posVbo);
	glEnableVertexAttribArray(0);
	glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, sizeof(float) * 3, (void*)0);

	glBindBuffer(GL_ARRAY_BUFFER, colorVbo);
	glEnableVertexAttribArray(1);
	glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, sizeof(float) * 3, (void*)0);

	glBindVertexArray(0);

}

void prepareInterleavedBuffer() {
	float vertex[] = {
		-0.5f,0.5f,0.0f,1.0f,0.0f,0.0f,
		0.5f,-0.5f,0.0f,0.0f,1.0f,0.0f,
		0.0f,0.5f,0.0f,0.0f,0.0f,1.0f
	};

	GLuint vbo = 0;
	glGenBuffers(1, &vbo);
	glBindBuffer(GL_ARRAY_BUFFER, vbo);
	glBufferData(GL_ARRAY_BUFFER, sizeof(vertex), vertex, GL_STATIC_DRAW);

	glGenVertexArrays(1, &vao);
	glBindVertexArray(vao);
	glEnableVertexAttribArray(0);
	glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, sizeof(float) * 6, (void*)0);
	glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, sizeof(float) * 6, (void*)(3*sizeof(float)));

	glBindVertexArray(0);
}

void createShaderProgram() {

	/*
	*	顶点着色器
	*/
	const char* vertexShaderSource = "#version 330 core\n"
		"layout (location = 0) in vec3 aPos;\n"
		"layout (location = 1) in vec3 aColor;\n"
		"out vec3 vertexColor;\n"
		"void main()\n"
		"{\n"
		"   gl_Position = vec4(aPos.x, aPos.y, aPos.z, 1.0);\n"
		"   vertexColor = aColor;\n"
		"}\0";
	// 创建shader
	unsigned int vertexShader;
	vertexShader = glCreateShader(GL_VERTEX_SHADER);
	// 添加代码
	glShaderSource(vertexShader, 1, &vertexShaderSource, NULL);
	// 编译shader
	glCompileShader(vertexShader);
	// 检查编译结果
	int  success;
	char infoLog[512];
	glGetShaderiv(vertexShader, GL_COMPILE_STATUS, &success);
	if (!success)
	{
		glGetShaderInfoLog(vertexShader, 512, NULL, infoLog);
		std::cout << "ERROR::SHADER::VERTEX::COMPILATION_FAILED\n" << infoLog << std::endl;
		exit(0);
	}

	/*
	*	片段着色器
	*/
	const char* fragmentShaderSource = R"(
		#version 330 core
		in vec3 vertexColor;
		out vec4 FragColor;

		void main()
		{
			FragColor = vec4(vertexColor, 1.0f);
		}
			)";

	unsigned int fragmentShader;
	fragmentShader = glCreateShader(GL_FRAGMENT_SHADER);
	glShaderSource(fragmentShader, 1, &fragmentShaderSource, NULL);
	glCompileShader(fragmentShader);
	glGetShaderiv(fragmentShader, GL_COMPILE_STATUS, &success);
	if (!success)
	{
		glGetShaderInfoLog(fragmentShader, 512, NULL, infoLog);
		std::cout << "ERROR::SHADER::FRAGMENT::COMPILATION_FAILED\n" << infoLog << std::endl;
		exit(0);
	}

	// 创建着色器容器
	shaderProgram = glCreateProgram();
	// 附着着色器
	glAttachShader(shaderProgram, vertexShader);
	glAttachShader(shaderProgram, fragmentShader);
	// 链接着色器
	glLinkProgram(shaderProgram);
	glGetProgramiv(shaderProgram, GL_LINK_STATUS, &success);
	if (!success) {
		glGetProgramInfoLog(shaderProgram, 512, NULL, infoLog);
		std::cout << "ERROR::SHADER::FRAGMENT::LINK_FAILED\n" << infoLog << std::endl;
		exit(0);
	}
	// 使用着色器
	glUseProgram(shaderProgram);
	// 完成销毁
	glDeleteShader(vertexShader);
	glDeleteShader(fragmentShader);
}

void render(GLFWwindow* window) {
	glfwPollEvents();
	glClear(GL_COLOR_BUFFER_BIT);


	glUseProgram(shaderProgram);
	glBindVertexArray(vao);
	glDrawArrays(GL_TRIANGLES, 0,3);

	glfwSwapBuffers(window);
}

参考资料

  1. Learn OpenGL, extensive tutorial resource for learning Modern OpenGL

  2. 游戏着色器（Shader）基础介绍 - 知乎

学习笔记
#计算机图形学 #OpenGL
计算机图形学入门 -- OpenGL
https://www.blog.jeanhua.cn/2025/08/11/b97a571d6884/
作者
jeanhua
发布于
2025年8月11日
许可协议
